Sniper Rifles - North-1 .338 Lapua

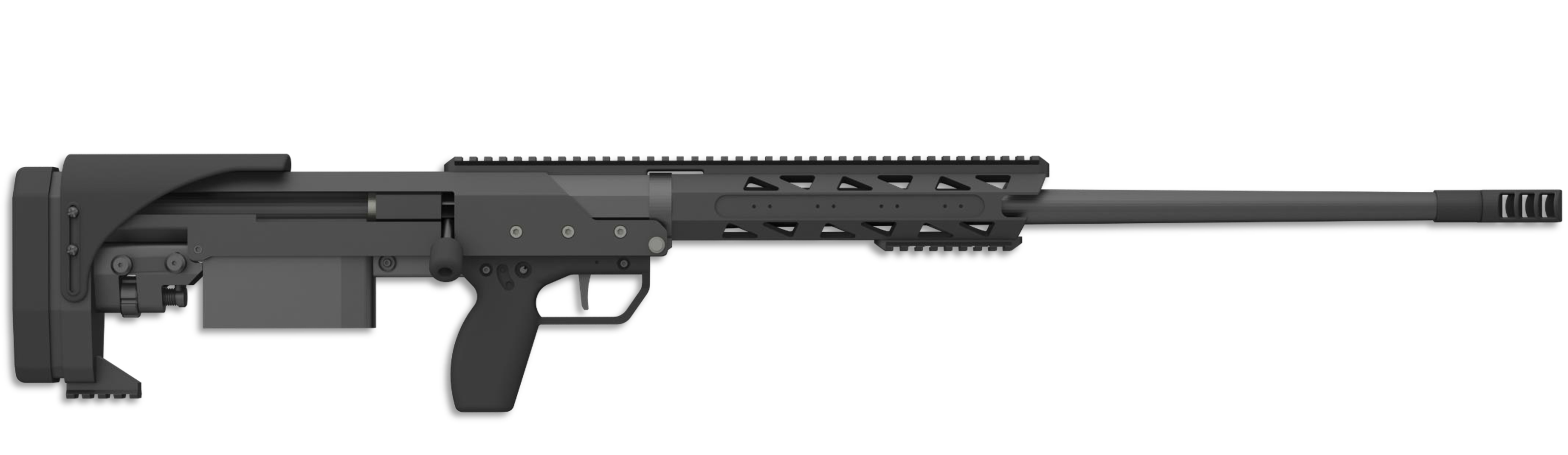

North-1 .338 Lapua

The North-1 Rifle is a potent weapon whose main purpose is to engage and neutralize enemy vehicles, equipment, and defended positions. It is frequently employed in military operations that call for accuracy and powerful weapons. Targeting vital parts like engines, radiators, and fuel tanks, it can successfully cripple light-armored cars, trucks, and transport equipment in anti-vehicle operations, one of its main uses.

With its long-range precision, the North-1 is also utilized in sniper operations, allowing trained marksmen to engage high-value targets at extreme distances. In counter-sniper missions, its ability to pierce armor is particularly useful because it can remove enemy snipers who are hiding behind cover. This rifle is a crucial tool for fortification penetration and bunker busting because of its high-caliber projectiles, which can breach hardened structures like watchtowers, bunkers, and defensive positions that are sandbagged.

Technical Deatils

.338 LAPUA
Caliber
8.6 x 70 mm
Oprating Princple
Bolt Action
Bolt System
Centre striker fired mechanism
Feed Mechanism
5/10 Round box magazine
Modes of fire
Single shot
Other
Trigger pull
12 N, 2 stage trigger pull (Adjustable)
Muzzle velocity
890-910 m/s (250gr)
Barrels profile/twist
6 grooves, 1:10
Mounts
2 Picatinny rails on 12 and 6 o’clock.
2 removable picatinny rails at 3 and 9 o’clock.
1 Picatinny rail for Monopod.
Dimentions Standard UTC (Micro)
Max length (stock extended)
1.09m (27in Barrel)
0.93m, (20in Barrel) / 0.88m (18 in Barrel) / 0.83 (16 in Barrel)
Min Lenght
1.5 m
0.87m, (20in Barrel) / 0.824m (18 in Barrel) / 0.775 (16 in Barrel)
Weight
Weapon without magazine
6.5 Kgs
5.8 Kgs (20 in / 5.7 Kgs (18in)/ 5.59Kgs (16in)
Magazine (full)
0.692 Kgs

.338 Lapua Variants

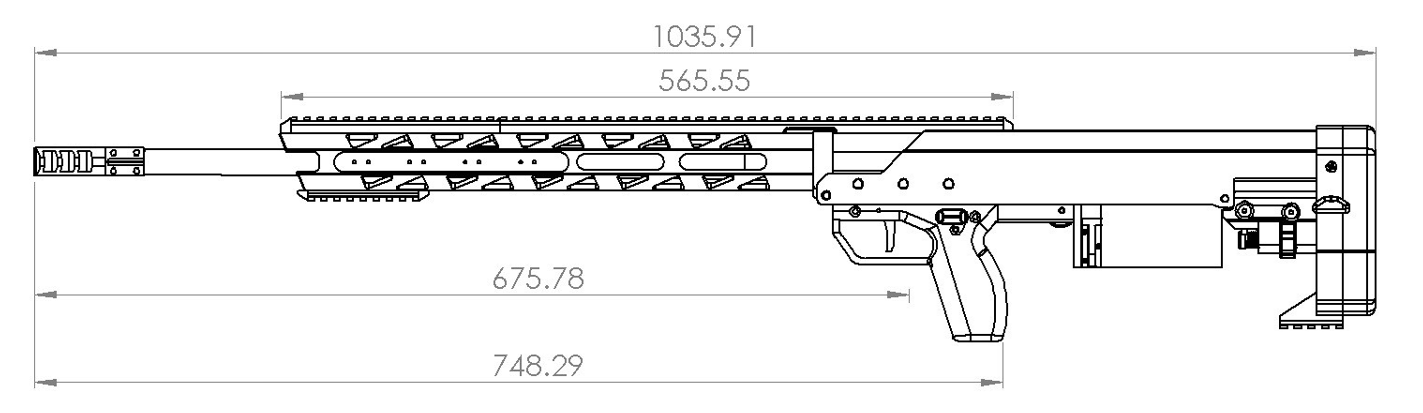

FULL-SPEC: DAY+NIGHT+ LONG RANGE OPERATION

  • full picatinny rail (12 o clock) for mounting long range rifles scopes + thermal sights
  • 27 in barrel
  • Total length 1036 mm including muzzle break

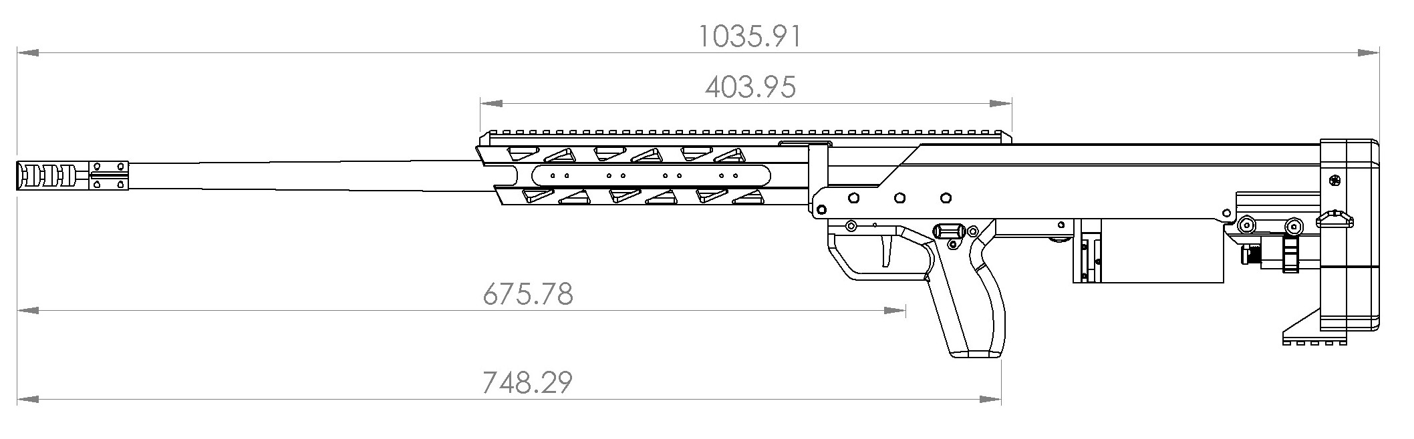

SHORT RAIL-SPEC: DAY +LONG RANGE OPERATIONS

  • full picatinny rail (12 o clock) for mounting long range rifles scopes + thermal sights
  • 27 in barrel
  • Total length 1036 mm including muzzle break

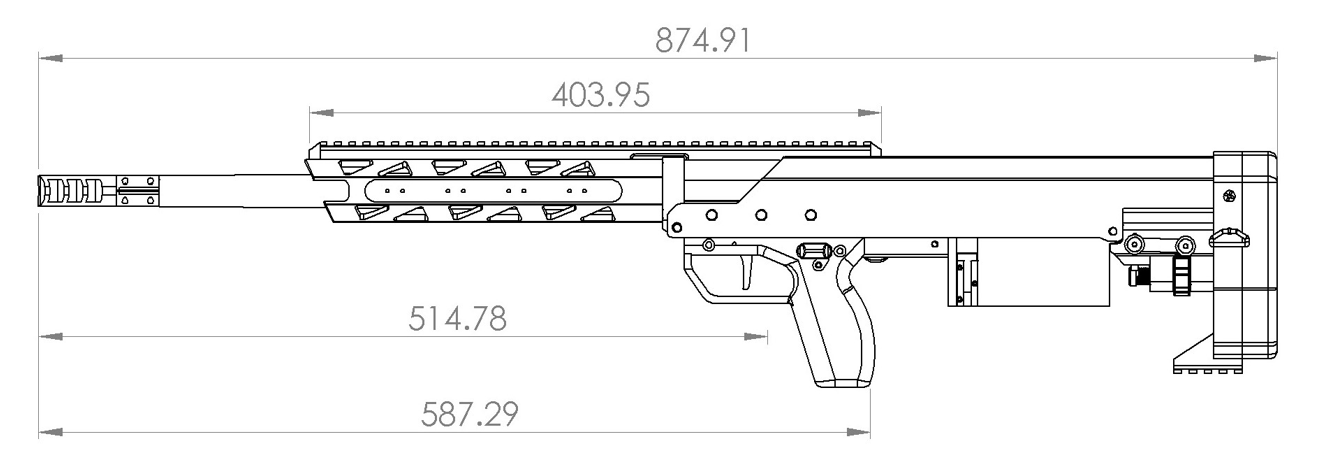

UTC-SPEC: DAY + MEDIUM RANGE OPERATIONS

  • Shorter Picatinny rail (12 o clock) for mounting Long Range Rifle Scopes such as a 5-25X56 scope.
  • 20 in Barrel for operations with effective range of 400-600 m.
  • Total Length 875 mm including Muzzle Break.

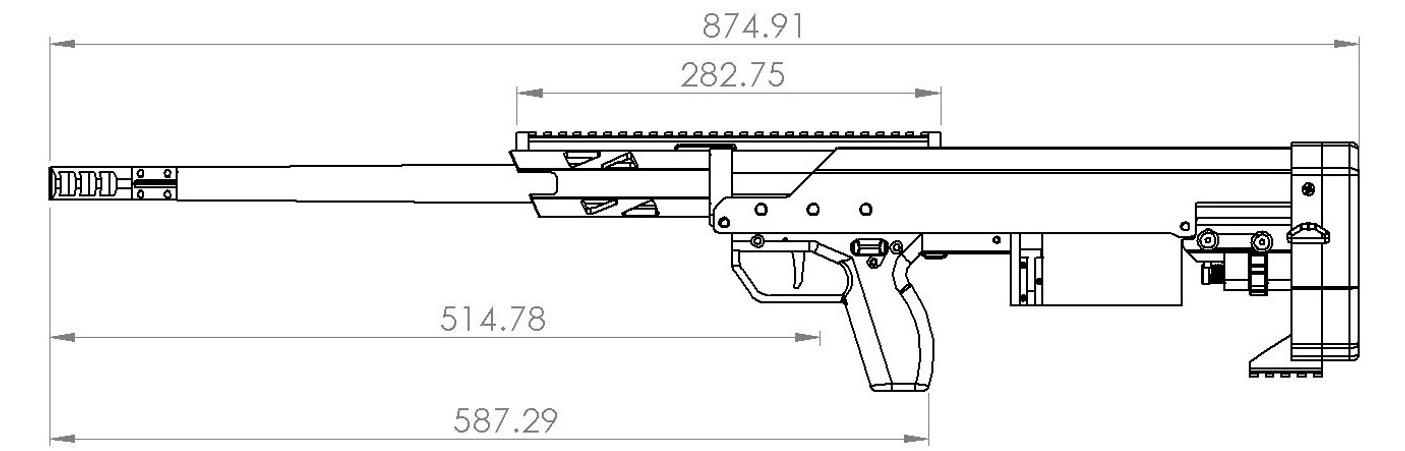

UTC(Micro)-SPEC: DAY + MEDIUM RANGE OPERATIONS

  • Micro Picatinny rail (12 o clock) for mounting Medium Range Rifle Scopes such as a 1-6×24 scope.
  • 20 in Barrel for operations with effective range of 400-600 m.
  • Total Length 875 mm including Muzzle Break.
  • Rail Lengths customisation available.

Weapon Accessories

Bipods

Purpose: Provides stability and support for precision shooting, especially in long-range engagements.

Features: Adjustable legs, lightweight materials (carbon fiber/aluminum), and quick-deploy mechanisms.

Common Uses: Used in sniper rifles, hunting rifles, and tactical shooting to reduce recoil and improve accuracy.

Monopods

Purpose: Enhances rear-end rifle stability when shooting from a prone or bench-rest position.

Features: Adjustable height, quick-deploy design, and compact storage.

Common Uses: Used in sniper and precision rifles to improve accuracy for long-range shots.

Barrels

Purpose: The barrel guides the bullet’s trajectory, affecting accuracy, velocity, and range.

Features: Available in various lengths, materials (steel, carbon fiber), and rifling patterns to optimize performance.

Common Uses: Used in rifles, pistols, and shotguns, with longer barrels improving accuracy and shorter barrels enhancing manoeuvrability.

Picatinny Rails

Purpose: Provides a standard mounting platform for attaching optics, grips, lasers, and other firearm accessories.

Features: Universal compatibility, multiple mounting slots, and durable metal construction.

Common Uses: Found on modern rifles, shotguns, and handguns to allow customization with attachments.

Scope Protection Kits

Purpose: Provides stability and support for precision shooting, especially in long-range engagements.

Features: Adjustable legs, lightweight materials (carbon fiber/aluminum), and quick-deploy mechanisms.

Common Uses: Used in sniper rifles, hunting rifles, and tactical shooting to reduce recoil and improve accuracy.

Suppressors & Muzzle Devices

Purpose: Reduce sound, recoil, and muzzle flash, improving shooter control and stealth.

Features: Includes suppressors (silencers), compensators, flash hiders, and muzzle brakes for different shooting needs.

Common Uses: Found in military, tactical, and hunting firearms, helping with noise reduction, recoil management, and night-time visibility control.
